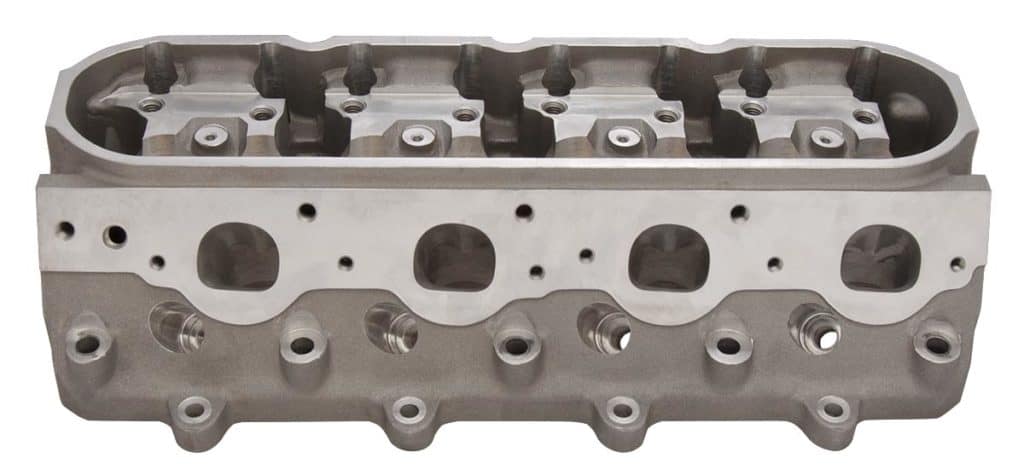

The revolutionary new BR X from BRODIX is by far the most powerful “as cast” conventional head on the market with a raised .300”, 444 cc intake port that flows 495 cfm! The exhaust port flows 305 cfm through only a 1.800 valve. This head features an efficient 100 cc chamber, as well as a valve angle rolled to 20 degrees. This new head is completely compatible with all existing 20° BRODIX components. As always, these heads come standard with all the fine qualities that you have come to expect from BRODIX.
• 20° Valve Angle
• 444 cc Intake Ports
• 2.400 / 1.800 Valve Sizes
• Flows 495 cfm
• Out-of-the-Box Horsepower
• 100 cc Combustion Chambers
Valve Bowls Blended
Match Intake Port to MG 2021
Competition Valve Job
2.400 x 6.030 o.a.l. – BR 81403
1.800 x 5.930 o.a.l. – BR 81080
1.645 Roller Valve Spring – PAC 1247 or PAC 1248,
315 lb Closed, 875 lb Open,
2.100 Installed Height,
.850 Maximum Lift (Spring Upgrade)
1.640 Roller Valve Spring – PAC 1224,
270 lb Closed, 775 lb Open,
2.050 Installed Height,
.800 Maximum Lift (Spring Upgrade)
1.625 10° Titanium – MA 23640
1.645 10° Titanium – MA 2001
10° Jumbo – CC 611
11/32 – US VS529V (1.625 Spring)
11/32 – US VS485V (1.645 Spring)
70 ft-lb
40-45 ft-lb
FEL-PRO 1412
BRODIX SK HS SR 20 For BRODIX Aluminum Block
AR 235-4323 for Cast Iron Block
P 2.460 x .450
BH 545 11/32 PL
May Not be Cut Any Larger
or Deeper Than 1.750
20° and 4° Intake
13° and 4° Exhaust
.0066 in Per cc
.0050 in Per cc
Not Available
Special
N/A
N/A
Standard
Special
Special Length
MOROSO 68483
