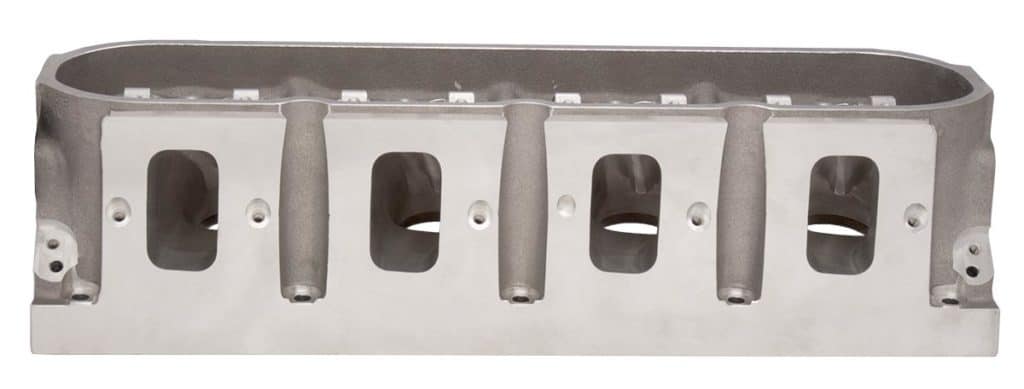

BRODIX delivers the industry’s most durable replacement for the LS3 style cylinder heads with the introduction of the BR 3 series. The BP BR 3 is a 100% CNC ported head that features a 280 cc intake port that flows over 363 cfm. The BR 3 is the unported version designed for outstanding “out-of-the-box” performance. Both heads utilize a 15° valve angle, a 71 cc combustion chamber, and a 2.165 / 1.590 valve combination, and accept all standard LS3 components. The BR 3 series shares all of the legendary BRODIX features including easily repairable A-356 virgin aluminum alloy and the strongest deck surface in the industry.
• 15° Valve Angle
• 2.165 / 1.590 Valve Sizes
• Out-of-the-Box Horsepower
• 71 cc Combustion Chambers
• LS3 Compatible
• Uses Existing LS3 Rockers
Valve Bowls Blended
Match Intake Ports to FEL-PRO 1223-3
Competition Valve Job
2.165 x 4.900 o.a.l. x 8 mm Stem, Beadlock – BR 79002
1.590 x 4.923 o.a.l. x 8 mm Stem, Beadlock -BR 79001
1.350 Hydraulic Roller Valve Spring – MA 221435,
180 lb Closed, 435 lb Open,
1.850 Installed Height,
.700 Maximum Lift
1.290 7° Steel – MA 23610
MA 13098
N/A
N/A
8 mm – US VS31500 V
MANLEY 42135
11 mm Studs – 85 ft-lb With Oil
8 mm Studs – 26 ft-lb With Oil
22 ft-lb
FEL-PRO MS 92467
ARP 234-4319 (6 pt) for L92 / LS3 Blocks
NGK R5671A-7
for Pump Gas
NGK R5671A-8
for Racing Gas
P 2.300 3/8
P 1.680 3/8
SMG 502 8MM CM7
May Not Be Cut Any Larger or Deeper Than 1.350
15°
.0060 in PER cc
Standard
Not Available
Standard
Standard
Standard
Standard
Standard
Standard
